HF system tunnel antenna

WITH CONVEYOR BELT

HF system tunnel antenna | Art. no. 17858

Use Cases:

Wäschereien & Mietwäschereien

Description

Our innovative scanning systems are cutting-edge and ensure optimal laundry sorting thanks to the corresponding tags. Entire packages, sacks or piles of laundry can be scanned in seconds, greatly saving time!

ideal for integration into existing conveyor systems

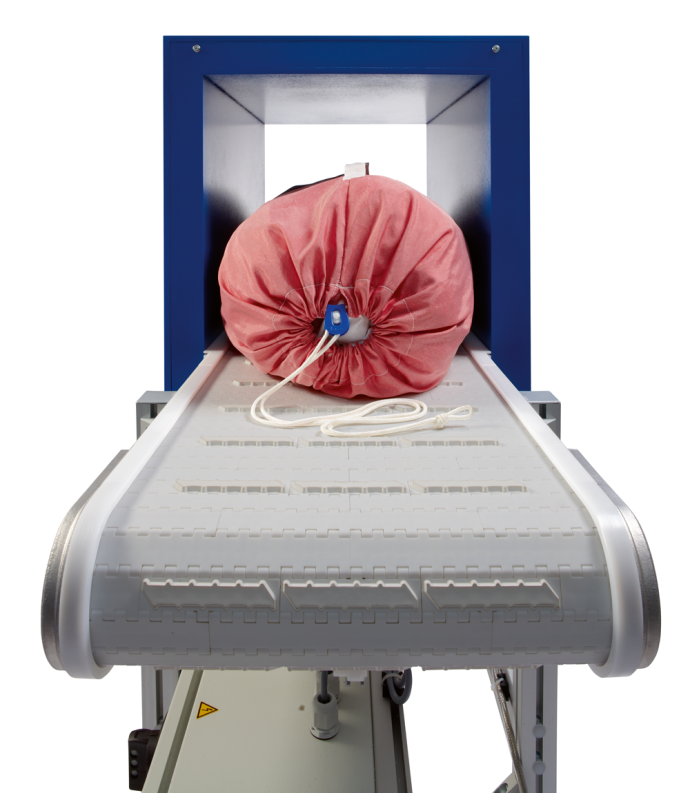

reading of whole packages, sacks or piles of laundry
huge time savings
100 % reliability

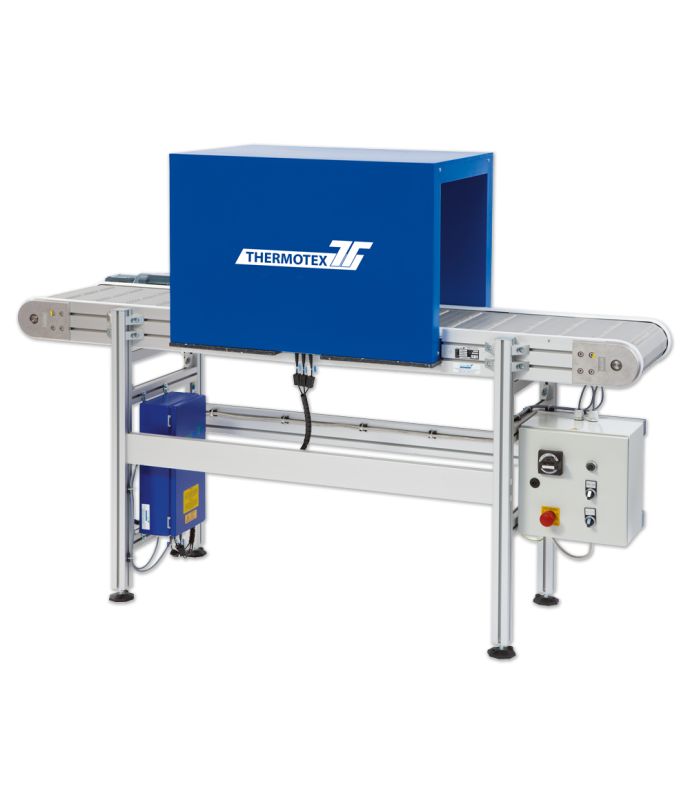

The pictured system includes:

tunnel antenna
mesh belt conveyor
long-range reader
antenna multiplexer
control unit with frequency converter
belt speed adjustable up to 13m/min.

Application

Which machine is the right one?

Do you have a specific requirement or an exciting task to solve and don't know which machine is right for you? No problem. Our consultants will be happy to help you and provide you with the right equipment. To do this, we ask the right questions so that in the end you find a solution that works optimally overall.

Kontaktieren Sie uns

Video

Technical Data

Areas of application	work clothes, mops/cloths, bathrobes, hand towels, etc.
Tag use	16 mm
Reading	piles, recording contents of whole bags, piles of laundry and individual items
Tunnel external dimensions (L x W x H)	800 x 550 x 550 mm
External dimensions (L x W x H)	1.904 x 710 x 1.361 mm
Tunnel opening (L x W x H)	430 x 430 mm
Interfaces	Ethernet, optional: RS232, USB
