HF-System Long-Range Table Shielded

especially for metal tables

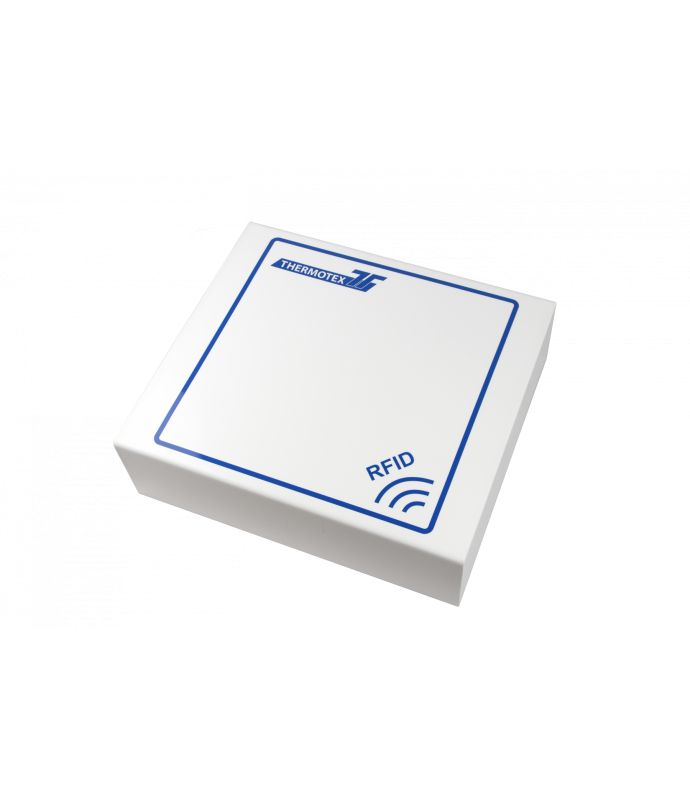

HF-System Long-Range Table Shielded
Art. no. 21482

Use Cases:
anwendung waescherei
Wäschereien & Mietwäschereien
anwendung technischerhandel
Technischer Handel
anwendung industrie
Industrie & Konfektion


Our innovative scanning systems are cutting-edge and ensure optimal laundry sorting thanks to the corresponding tags.

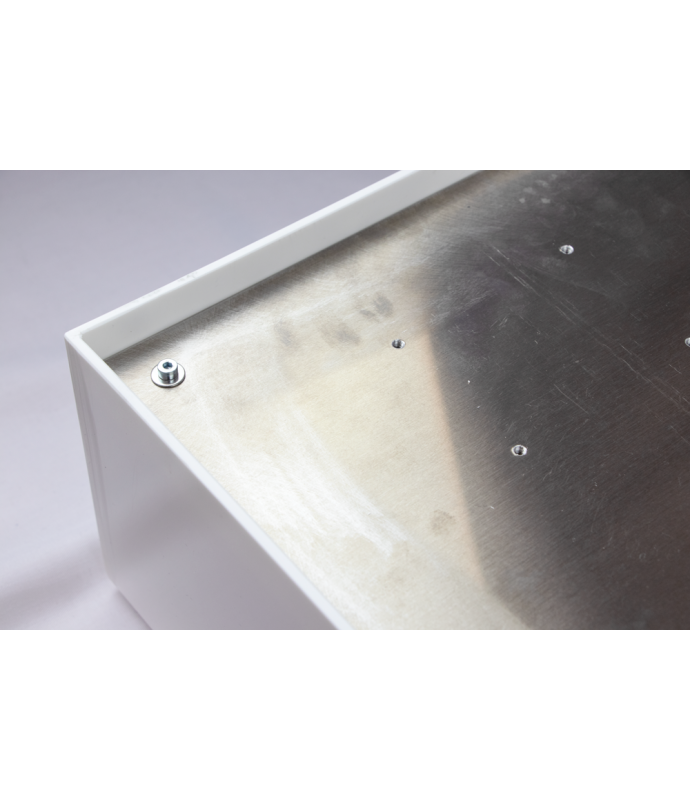

  • especially for metal tables

The pictured system includes:

  • HF industrial reader
  • HF antenna

Applications

Which machine is the right one?

Do you have a specific requirement or an exciting task to solve and don't know which machine is right for you? No problem. Our consultants will be happy to help you and provide you with the right equipment. To do this, we ask the right questions so that in the end you find a solution that works optimally overall.

Kontaktieren Sie uns

Areas of application

residents‘ laundry, workwear, mops / dusters,
bathrobes, towels etc.

Reading

single, pile

Tag use
(in mm)

and

reading distance

Transponder 7mm2

Transponder 11mm2

Transponder 16mm

0-14 cm

0-29 cm

0-38 cm

Antenna dim.
(L x W x H)

443 x 501 x 146 mm

Decoder dim.
(L x W x H)

420 x 200 x 120 mm

Interfaces

RS232, Ethernet, USB
